1. The transmission adopts worm and worm
gear structures that allow forhigh precision continuous rotation of the stage in
both clockwise and counterclockwise directions.
2.Zero positionphotoelectric
switches can be added.
3.Servo motors can be used
instead of stepper motors.
4. Therotary stage can operate in a vacuum environment.
Share to：
description
parameters
MRS100 series motorized precision rotary stages
1. The transmission adopts worm and worm gear structures that allow forhigh precision continuous rotation of the stage in both clockwise and counterclockwise directions.
2.Zero positionphotoelectric switches can be added.
3.Servo motors can be used instead of stepper motors.
4. Therotary stage can operate in a vacuum environment.
Related Products：
STEPPER MOTOR CONTROLLERS MOTORIZED POSITIONING UNITS
Model

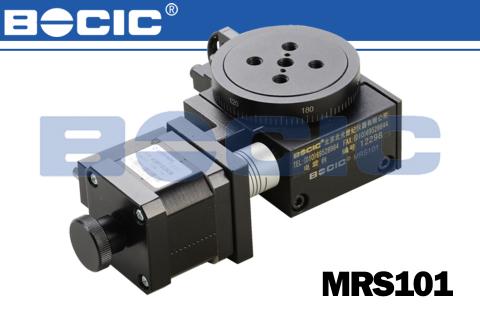

MRS101
MRS102

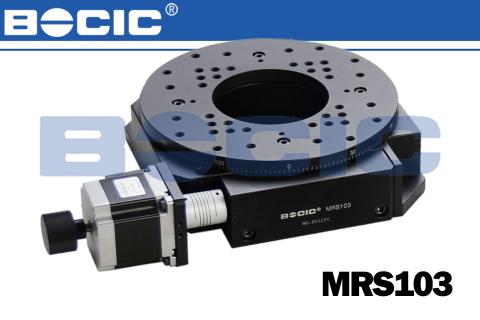

MRS103

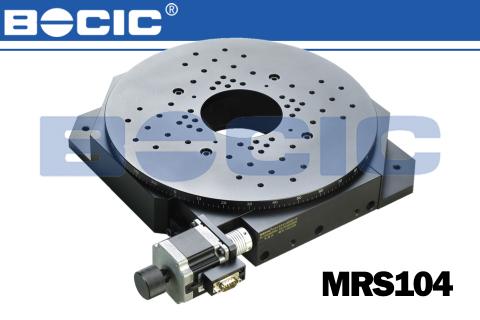

MRS104

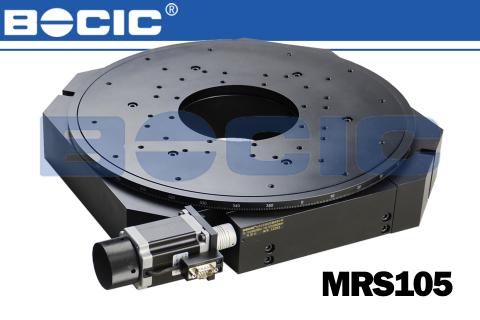

MRS105
Stage size（mm）
φ60
φ100
φ200
φ300
φ400
Gearratio
90：1
180：1
180：1
270：1
720：1
Resolution
0.0003°
0.0002°
0.0002°
0.0001°
0.000039°
Resetting positioning accuracy
＜0.01°
＜0.005°
＜0.004°
＜0.0035°
＜0.003°
Maximum speed
50°/s
25°/s
25°/s
12.5°/s
6°/s
Stepper motor（1.8°）
42stepper motor
56stepper motor
Maximum static torque（Ncm）
40
40
80
80
80
Loading capacity(kg)
30
50
60
70
80
Weight（kg）
0.9
1.8
7.2
13.5
37.5
Comment
The product can be used in vacuum environment，but you need to have it made to order.
